| Genel Özellikler General Features |
| Seri Series |

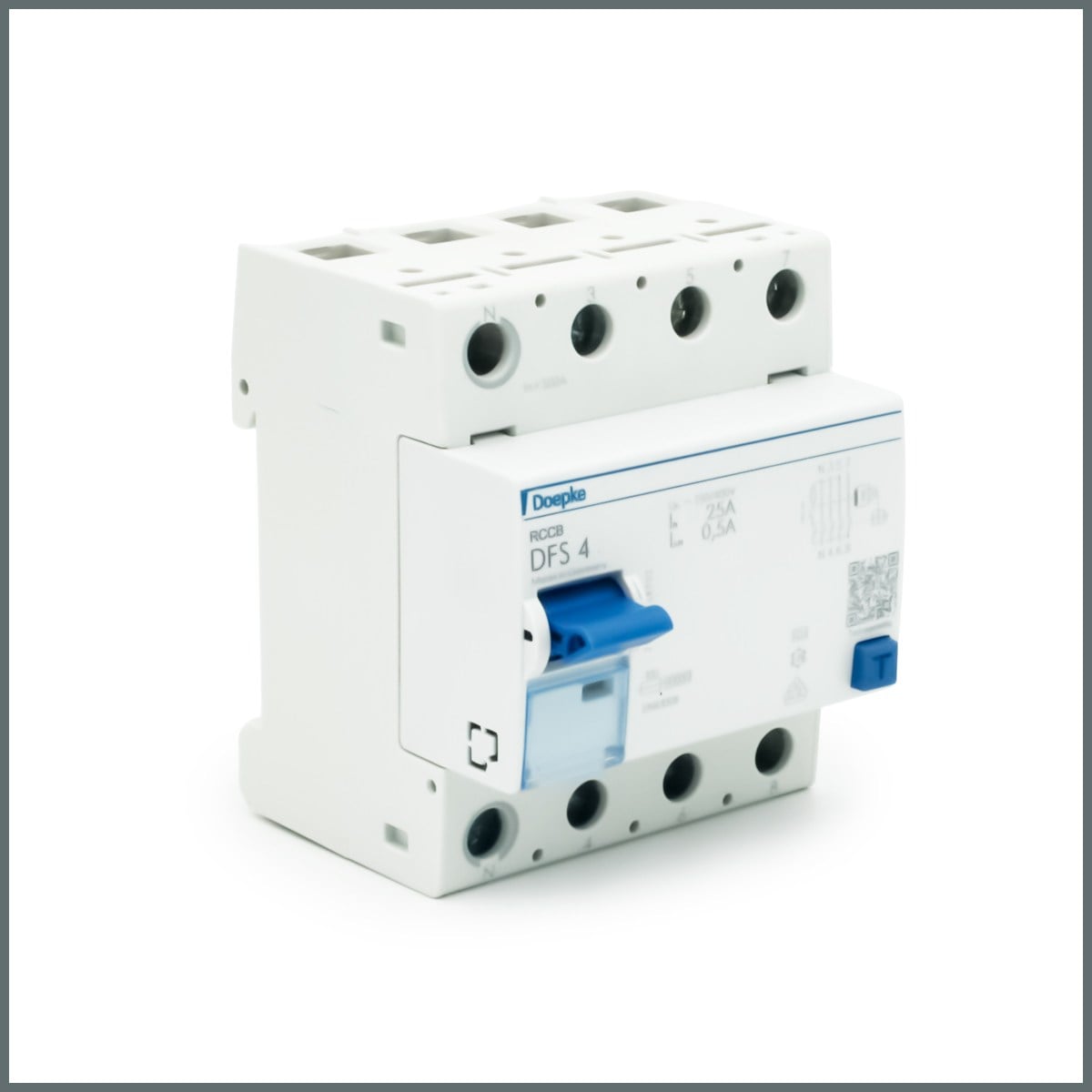

DFS 4 A [cite: 9] |
| Kutup Sayısı Number of poles |
4 [cite: 9] |
| Kaçak Akım Tipi Residual current type |
A (Darbeli ve AC duyarlı / sensitive to pulsating and AC) [cite: 9] |
| Anma Akımı (AC) Rated current (AC) |
25 A [cite: 9] |
| Anma Kaçak Akımı (IΔn) Rated residual current IΔn |
500mA [cite: 9] |
| Kısa Süreli Gecikmeli Short-time delayed |
Hayır (False) [cite: 9] |
| Seçici (Selektif) Selective |
Hayır (False) [cite: 9] |
| Test Devresi Min./Maks. Gerilimi min. / max. Operating voltage range of test circuit |
200 V / 440 V [cite: 9] |
| Maksimum Kesme Süreleri Maximum disconnection times |
1 · IΔn: ≤ 300 ms; 5 · IΔn: ≤ 40 ms [cite: 9] |
| Yük Devresi Load Circuit |
| Özellik Specification |
Yük ayırma kontağı load disconnect contact [cite: 9] |
| Anma Gerilimi (AC) Rated voltage (AC) |
230 V, 400 V [cite: 9] |
| Anma Kısa Devre Akımı Rated short-circuit current |
10 kA [cite: 9] |
| Darbe Akımı Dayanımı Surge current strength |
0.25 kA [cite: 9] |
| Maks. Toplam Anma Kesme Kapasitesi max. Total rated switching capacity |
500 A [cite: 9] |
| Anma Yalıtım Gerilimi Rated insulation voltage |
400 V [cite: 9] |
| Anma Darbe Dayanım Gerilimi Rated impulse withstand voltage |
4 kV [cite: 9] |
| Akım Yolu Başına Isı Kaybı Current heat loss per current path |
0.5 W [cite: 9] |
| Kısa Devre Yedek Sigortası (SCPD) Short-circuit backup-fuse SCPD |
100 A (Tip: gG) [cite: 9] |
| Bağlantı ve Klemensler Terminals |
| Nötr İletken Pozisyonu Neutral conductor position |
Sol Left [cite: 9] |
| Doğrudan Temasa Karşı Koruma Protection against direct contact |
DGUV V3, VDE 0660-514, parmak ve el sırtı korumalı [cite: 9] |
| İletken Kesiti (Som/Tek Telli) Cross section solid |
1-telli: 1.5 mm² ... 50 mm²; 2-telli: 1.5 mm² ... 16 mm² [cite: 9] |
| İletken Kesiti (Esnek/Çok Telli) Connecting capacity flexible |
1-telli: 1.5 mm² ... 50 mm²; 2-telli: 1.5 mm² ... 16 mm² [cite: 9] |
| Sıkma Torku Tightening torque |
2.5 Nm ... 3 Nm [cite: 9] |
| Genel Veriler ve Boyutlar General Data & Dimensions |
| Montaj Tipi Installation type |
35 mm Montaj Rayı (DIN Ray) Mounting rail [cite: 9] |
| Mekanik / Elektriksel Dayanım Mechanical / Electrical endurance |
Min. 5000 / 2000 döngü cycles [cite: 9] |
| Ortam Sıcaklığı Ambient temperature |
-25 °C ... 40 °C [cite: 9] |
| Kasa Tipi / Malzeme Housing / Material |
Dağıtım panosu / Termoplastik [cite: 9] |
| Koruma Sınıfı Protection class |
IP20 (Monte edilmiş halde: IP40) [cite: 9] |
| Boyutlar (G x Y x D) Dimensions (W x H x D) |
72 mm x 85 mm x 75 mm (Montaj derinliği: 69 mm) [cite: 9] |
| Modül Genişliği Module widths |
4 [cite: 9] |
| Ağırlık Weight |
0.407 kg [cite: 9] |
| Standartlar Standards |
VDE 0664-10, DIN EN 61008-1 [cite: 9] |
